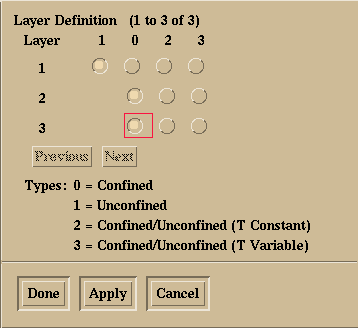

Figure 16.4: Active Layer Definition pop-up dialog. This dialog is used to define what layer is to be edited or defined. This dialog precedes calls to the utility package dialogs for Boundary Conditions (U2DINT).
